Product

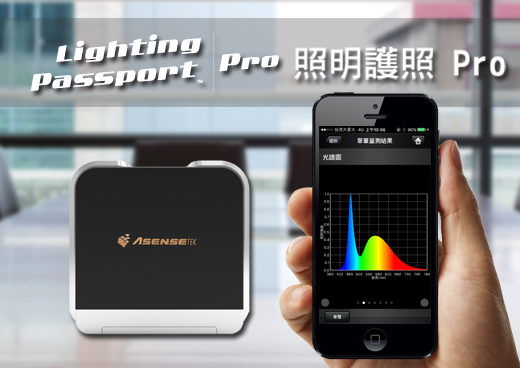

Lighting Passport Pro
Company
ASENSETEK INCORPORATION
Website
http://www.asensetek.com/lighting-passport-pro/
Product Model
Standard
Features
Lighting Passport Pro is not only the Worlds First Smart Spectrometer with powerful capabilities, but now it also integrates 6 whole new features, including Flicker measurability and is ready to blow your mind!

State-of-the-art MEMS technology that integrates Flicker measurability.
Conformance to U.S. IES / ASSIST / Energy Star / etcK standards.
A variety of APPs for all lighting applications.
Accurate presentation on lights and colors of all kinds.
Instant and transboundary communication.

Flicker Sensor ( 5% accuracy)

Flicker Frequency (5 V 200Hz)
Flicker Percentage
Flicker Index

PC Control
Users can use a PC (Supports Windows system now) to control Lighting Passport Pro series and take measurements.

Precision Mode
Enhanced measurement repeatability. (For Lighting Passport Pro ONLY.)

Temperature and Relative Humidity Sensor (Comply with our operating environments.)
Automatically record the Temperature and Relative Humidity of the environment where the measurements are taken.

Enhanced Battery Duration
Now, with battery fully charged, users NOW get an extra 20% power capacity.

Social Media Integration
Users can share measurement data via social media including Instant Messengers e.g. WeChat / Twitter / Line / Facebook / Messenger / Whatsapp / SMS / Others
Specification
Size
Width: 68.5 mm
Depth: 17 mm
Height: 56 mm

Net Weight
79 g 1 g


Wavelength Range
380 ~ 780 nm

Illuminance Range
Measurable : 5 ~ 50,000 lux
Reliable Chromaticity : 50 ~ 50,000 lux

Output wavelength pitch
1 nm

Optical Resolution (FWHM)
8 nm

Repeatability* In Precision Mode (@ 1,000 lux Standard Light Source)
*x, y: 0.0005

Accuracy (@ 1,000 lux Standard Light Source)
x, y: 0.002
Illuminance: 3 %
CCT: 2 %

Flicker Measurement Capability
Range: 5 ~ 200 Hz
Accuracy: 5 %
(Up to 600 Hz, @over 30,000 lux)

Integration Time
6 ms ~ 16 s

Language
Traditional Chinese, Simplified Chinese, English, Japanese,
French, German, Russian,Italian, Turkish, Spanish, Suomi

Measurement Mode
Single, Multiple, Continuous, Subtract Background

Measurement Capability
CCT
Duv
CIE 1931
CIE 1976
Spectrum Diagram
C78.377-2008
IEC-SDCM
CRI (Ra) (R1-R8)
CRI (Re) (R1-R15)
R1 ~ R15
CQS
TLCI(Qa)
GAI
Illuminance
Foot Candle
PPFD
Peak Wavelength (fp)
Dominant Wavelength (fD)
Purity
SP ratio
Flicker Index
Flicker Percentage
Flicker Frequency

Additional function
1. TM-30-15 (Rf, Rg Diagram)GFREE (iOS/Android)
APPs: SGM

2. Smart Pass (Smart Pass)G20 USD (iOS/Android IAP)
APPs: SGM/SGAL/SGS
Users can get it for Free just by Emailing your records to at least 3 users.

Key Functions
Automatically Record Temperature Humidity
Photograph
Note
Data Filter
Auto Connection
Auto Dark Calibration
Data Comparison
WiFi Transfer
GPS Orientation
Social Media Integration

Operating Temperature/Humidity
0 ~ 35 XC, relative humidity under 80% with no condensation

Storage Temperature/ Humidity Range
-10 ~ 45 XC, relative humidity of 85% or less (@ 35 XC) with no condensation

APP
SGM
SGT
SGAL
SGS
Certificate
#65517; FC
FCC ID: QQQBLE112
IC: 5123A-BGTBLE112

#65517; SRRC CMIIT ID: 2013DJ8854

#65517; NCC: CCAE13LP1170T9

#65517; TELEC: 209-J00046

#65517; RoHS Compliant

#65517; CE
Award
Since
2015
